Decoding DC Breakers
1. Understanding DC Breaker Basics

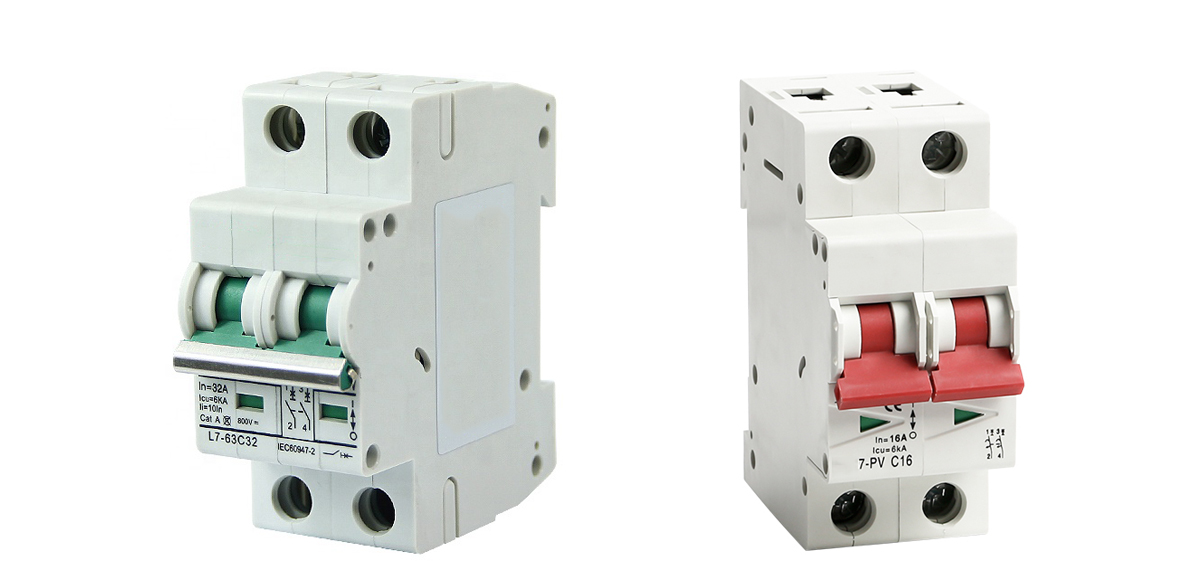

So, you're diving into the world of DC (Direct Current) circuits, huh? Maybe you're setting up a solar panel system, tinkering with batteries, or just curious about electronics. One question that often pops up is: Do DC breakers have polarity? The short answer is yes, absolutely. But let's unpack that a bit because "yes" doesn't tell the whole story.
Unlike AC (Alternating Current), where the current direction switches back and forth, DC flows in one direction only. This consistent flow creates a positive (+) and a negative (-) side in the circuit. DC breakers are designed to interrupt this one-way flow of electricity under fault conditions, like a short circuit or overload. Because of this unidirectional nature, polarity becomes a crucial factor.
Imagine a one-way street. Cars can only travel in one direction. Now imagine trying to force a car to drive the wrong way. Not ideal, right? Same with electricity! If you connect a DC breaker with reversed polarity, it may still function to some extent, but it wont provide the safety and protection it's designed for, and could even damage the breaker or connected equipment. Think of it as a safety net with holes. It might catch you, but you might still get hurt.
Think of polarity like correctly assembling a puzzle. Each piece only fits in one specific spot. Trying to force it will only break the puzzle piece or damage the surrounding pieces. Same concept applies with DC breakers. Proper polarity ensures the circuit operates as intended and provides the correct protection. Pay attention to those little plus and minus signs; they're there for a reason!
2. Importance of Correct Polarity in DC Circuits
3. Safeguarding Your System
Getting the polarity right on your DC breaker is critical for a whole bunch of reasons, most importantly for safety. We're talking about preventing fires, protecting your equipment, and keeping you (or anyone else who might come into contact with the system) safe from electrical shock. Messing it up can have some pretty unpleasant consequences.
Let's say youre working on a solar panel setup. Solar panels generate DC electricity. If you incorrectly wire the DC breaker with reversed polarity, in the event of a fault (like a short circuit), the breaker might not trip as quickly or reliably as it should. This delay could allow excessive current to flow, overheating wires, potentially igniting flammable materials nearby, and causing a fire. Nobody wants that!
Beyond fire hazards, incorrect polarity can also damage your expensive equipment. Electronic components are designed to operate with current flowing in a specific direction. Reverse the polarity, and you risk frying delicate circuits, damaging batteries, or even destroying entire appliances. Think of it like pouring gasoline into a diesel engine — it's just not going to end well.
Furthermore, if a DC breaker is wired incorrectly with reversed polarity, the internal protection mechanisms within the breaker might be compromised. This can leave the circuit vulnerable to surges and overloads, increasing the risk of electrical hazards. It's like having a bodyguard who's facing the wrong way — they won't be able to protect you when danger comes.
